Metal shredder is a kind of equipment specialized in rough crushing for all kinds of large-volume and high-hardness scrap steel and aluminum. By crushing scrap metal, it increases its stacking density for transportation and recycling. This equipment is widely used for shredding paint drums, diesel drums, thin iron sheets, car shells, metal briquettes, sheet metal scraps and other waste metal materials.
It mainly relies on the principle of “shear and cut” to complete the process of crushing solid waste. The motor drives the reducer to transfer the torque to the movable knife of the crusher through the shaft of the knife roller, the knife hook of the movable knife hooks the material to tear it downward, and the blades of the rollers cut solid waste like scissors, and the crushed material and pre-screened material are discharged from the bottom of the crusher.
Applicable Materials
Product Advantages
-
Long

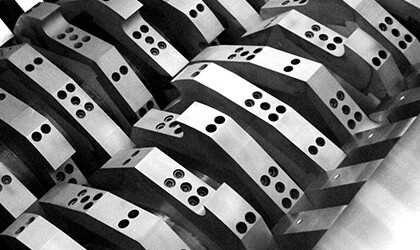

Imported Alloy Cutting Tools
The cutting tool is made of imported alloy steel material and processed by high-precision machine tools, with higher mechanical properties, better toughness and wear resistance, and significantly extended service life. Cutting tools can be extended in lifespan through laser cladding or high-temperature cladding. After the tool wears out, it can be repaired multiple times by welding, saving the cost of use.
-
Stable
Integrated Knife Box
The box adopts mortise and tenon design technology and overall annealing treatment technology. Not only does it avoid pre stress caused by welding, but it also enhances the overall integrity and mechanical strength of the tool box, making it less prone to deformation during long-term use. At the same time, the knife box is divided into upper and lower parts, making maintenance and repair convenient and fast.
-
Force
Large torque force, large crushing force
Driven by a motor and reducer, the transmission of torque is smooth, with high precision and good guidance, resulting in greater output torque and stronger load-bearing capacity of the equipment, making the power of the equipment more powerful. Effectively improve production efficiency and reduce energy consumption.
Technical Parameters
| Product Name | Metal Shredder |
|---|---|
| Product Model | HZJX1300 |
| Equipment Weight | 4.5 kg |
| Motor Power | 1300 kw |
| Overall Dimensions | 400*500*700mm (actual dimensions subject to the drawings) |
| Feed Inlet Diameter | 300*500 mm |
| Output | 500 t/h |
| Suitable materials | Scrap car bodies, automotive parts, 200L metal oil drums, chemical drums, construction rebar, threaded steel bars, scrap metal furniture, metal sheets, industrial offcuts, steel chips/turnings, copper and aluminum scrap, aluminum alloy doors and windows. |
| Applicable Industries | Garbage recycling, waste recycling, renewable resource recycling, dismantling of old home appliances, environmental solid waste treatment, metal recycling and dismantling, hardware processing, automobile dismantling, hazardous waste disposal, etc |
| Country of Manufacture | Made in China |
| Certification System | ISO 9001 quality management system, CE certification, UL certification |
